▶ Home > Product > VehicleM |
|
| Specifications |
| |
K131 |
K311A1 |
K511A1 |
K711A1 |
K912 |
| |
 |
 |
 |
 |
 |
|
| Configuration,
Seatting |
4X4,
1+5 |
4X4,
1+1 |
6X6,
1+2 |
← |
8X8,
1+1 |
| Dimensions |
Overall
Length (mm) |
4,000 |
5,460
|
6,800 |
7,755 |
9,750 |
| Overall
Width (mm) |
1,745 |
2,180 |
2,500 |
2,465 |
2,600 |
| Overall
Height (mm) |
1,915 |
2,450 |
2,900 |
2,980 |
3,470 |
| Wheel
Base (mm) |
2,360 |
3,200 |
3,912 |
4,547 |
1,700/3,200/1,350 |
| Tread
: Front / Rear (mm) |
1,470/1,470 |
1,740/1,775 |
1,732/1,780 |
1,890/1,830 |
2,010/1,890 |
| Ground
Clearance (mm) |
220 |
245 |
270 |
270 |
345 |
| Angle
Approach (˚) |
41 |
45 |
46 |
44 |
31 |
| Angle
of Departure (˚) |
32 |
20 |
40 |
31 |
31 |
| Weight |
Curb Weight (kg) |
1,570 |
3,150 |
6,500 |
10,000 |
29,000 |
| Payload
|
Highway
(kg) |
540 |
1,530 |
4,540 |
9,080 |
3m
10ton/
8m 3ton |
| Cross-country
(kg) |
360 |
1,330 |
2,270 |
4,540 |
| Gross
Weight
|
Highway
(kg) |
2,110 |
4,680 |
11,040 |
19,080 |
36,000 |
| Cross-country
(kg) |
1,930 |
4,480 |
8,770 |
14,540 |
| Performance |
Max.Speed (km/h) |
130 |
100 |
90 |
85 |
90 |
| Max.Gradeability
(%) |
60 |
← |
← |
← |
← |
|
Cruising Range (km) |
480 |
700 |
600 |
600 |
1,000 |
|
Min.Turning Radius (m) |
5.9 |
8.5 |
11.0 |
12.9 |
12 |
|
Fording Depth (w/o Kit)
(mm) |
510 |
760 |
← |
← |
← |
| Engine |
Model |
FE-DOHC |
D4DA |
KK-7.4 |
D6AZ |
D6CA |
| Type |
In-line
4-Cylinder |
In-line
4-Cylinder |
In-line
6-Cylinder |
← |
6
Cylinder in Line |
|
Displacement (cc) |
1,998 |
3,907 |
7,412 |
11,149 |
12,920 |
|
Fuel |
Gasoline |
Diesel |
← |
← |
← |
|
Max.Horsepower (ps@rpm) |
130@6,000 |
130@2,900 |
183@2,900 |
270@2,200 |
450@1,900 |
|
Max.Torque (kg·m@rpm) |
18@4,500 |
37@1,600 |
51@1,600 |
98@1,400 |
190@1,400 |
| Transmission |
Type |
5 Forward,
1 Reverse
|
← |
← |
← |
16
Forward, 2 Reverse |
| Transfer
Case |
Number of Speeds |
Part
Time, 2-Speed |
← |
← |
← |
Full
time, 2-Speed |
| Fuel
System |
Fuel Tank Capacity (ℓ) |
53 |
106 |
208 |
295 |
400 |
| Electric
System |
Voltage (V) |
24 |
← |
← |
← |
← |
| Tire |
|
LT 235/75
R15 |
36"-12.5R
16.5LT |
9.00-20
8PR |
11.00-2012PR |
13R22.5
18PR |
|
| |

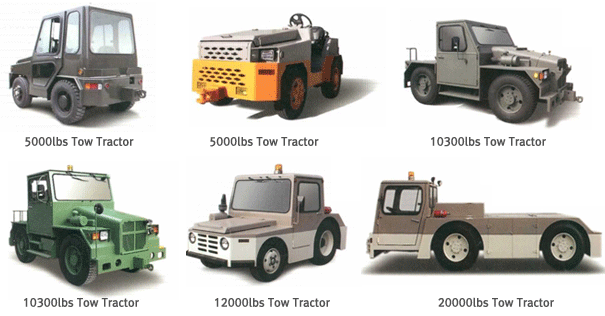

| Aircraft Tow Tractors |
| |
 |
| |

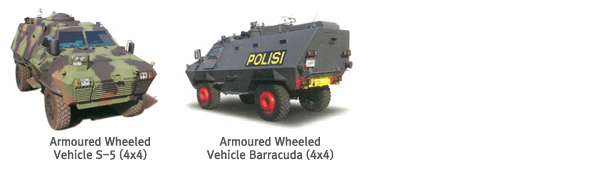

| Armoured Wheeled
Vehicles |
| |
 |
| |

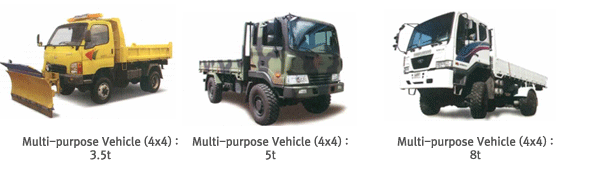

| Multi-purpose Vehicles |
| |
 |
| |

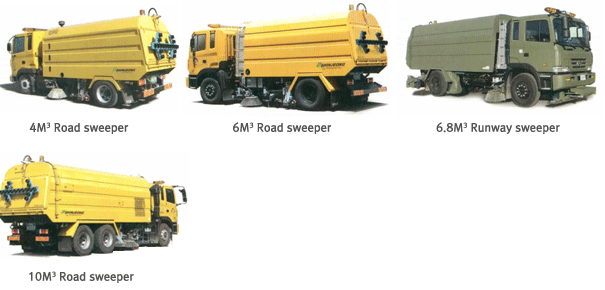

| Road Sweepers |
| |
 |
| |

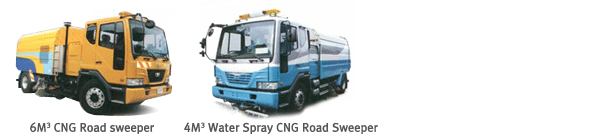

| CNG Road Sweeper |
| |
 |
| ●
DESCRIPTION |
- CUTTING
EDGE DEVELOPED AND LOCALIZED PRODUCT IN KOREA
- ADVANCED TECHNOLOGY PROVEN BY HYUNDAI MOTOR COMPANY
AS OEM
- APPLICABLE FOR ALL WHEEL DRIVE 2.5/3.5/5/8.5/16
TON TRUCK AND MINI BUS
- UNIVERSAL APPLICATION FOR VARIOUS VEHICLE MAKER
AND MODEL
- SELECTABLE OPTION CONSIDERED COST OR HIGH PERFORMANCE
- FLEXIBLE PRICE AND DELIVERY THAN GLOBAL SUPPLIER
IN US AND EUROPE |
| |
| ●

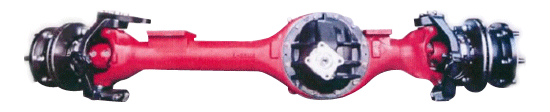

12.5/3.5TON FRONT DRIVE STEER RIGID AXLE |
A) MODEL : SFA-25/SFA-35
B) CAPACITY(KG) : 2400/2900
C) GEAR RATIO : 5.000, 5.375, 6.166, 6.666
D) AXLE JOINT : DOUBLE CARDAN
E) WHEEL MOUNT : 5 STUD/6 STUD M19*1.5
F) TRACK(MM) : 1689/1677
G) WEIGHT(KG) : 240
H) BRAKE : HYDRAULIC |
 |
|
| |
| ●

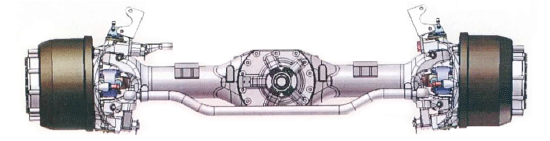

5TON FRONT DRIVE STEER RIGID AXLE |
A) MODEL : SFA-50
B) CAPACITY(KG) : 4500
C) GEAR RATIO : 4.111, 4.333
D) AXLE JOINT : DOUBLE CARDAN
E) WHEEL MOUNT : 8 STUD M20*1.5
F) TRACK(MM) : 1855
G) WEIGHT(KG) : 463
H) BRAKE : FULL AIR |
 |
|
| |
| ●

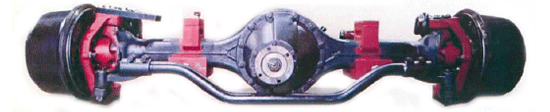

8.3TON FRONT DRIVE STEER RIGID AXLE |
A) MODEL : SFA-83
B) CAPACITY(KG) : 8300
C) GEAR RATIO : 6.67
D) AXLE JOINT : DOUBLE CARDAN
E) WHEEL MOUNT : 10 STUD M22*1.5
F) TRACK(MM) : 2017
G) WEIGHT(KG) : 950
H) BRAKE : FULL AIR |
 |
|
| |
|
|
|
 |
|
